Self-Adhered Roof Underlayments

Home > VBuild > VShield > Self-Adhered Roof Underlayments

Self-Adhered
Roof Underlayments

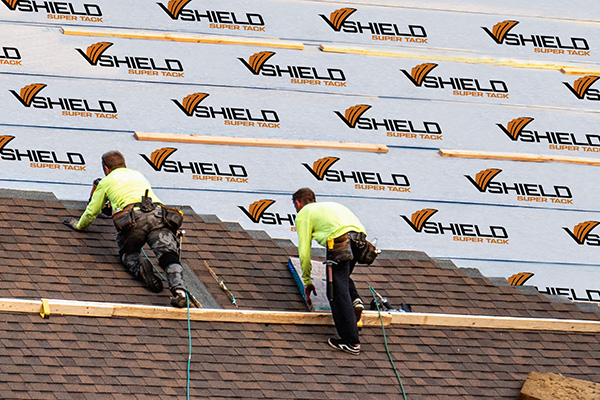

When the project calls for a self-adhering product the VShield SuperTack delivers on all fronts. This high temperature product boasts a true synthetic underlayment topside for great adhesion and great walkability.

Veer is one of the only manufacturers in the world that builds these products in-house under the same roof as a finished good. This is total control, total customisation and total quality under one roof.

v-shild_super-tack_2
v-shild_super-tack_1
v-shild_super-tack_6
v-shild_super-tack_5
v-shild_super-tack_4
v-shild_super-tack_3

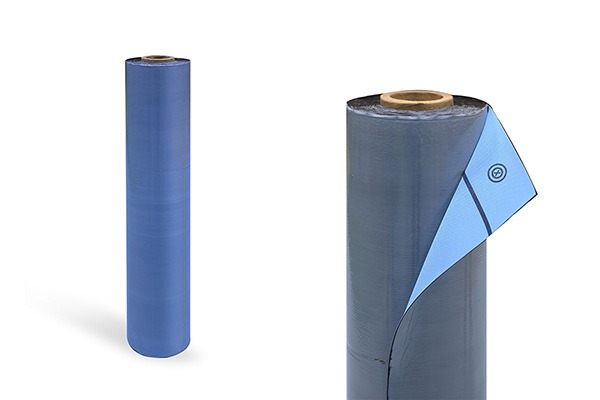

VShield SureTack Underlayment is a multilayer nonwoven high-temp self-adhered roofing underlayment with polymer modified bitumen-based superior adhesion and lighter in weight for under Asphalt Shingle Roofs.

Features and Benefits

  • Surface: Strong polypropylene (PP) surface with UV and weather resistive coating that add water shedding redundancy in the roofing system while protecting the structure from damage.
  • The Surface top creates easy walkability and safety.
  • Weather-Tight Seal: Strong Overlap System.
  • Polymer Modified Bitumen Based: Formulated for superior adhesion.
  • Handling: Light weight with Easy-Peel Dual Split-Release backer.
  • Certified to ICC ES AC 188 and ICC ES AC 48
  • Certified to ASTM D1970
  • Complied to ASTM D4789 as specified in FBC HVHZ TAS110
  • Complied to TAS 103 (Partial) requirements
  • Complied to FRSA/TRI Manual standards
  • 25 Years limited warranty.
  • Durable: UV stabilized surface resists UV degradation for up to 180 days.

Availability

Roll: 36”X 67 ft. | 2 sq. roll gross.
Packaging: 25 rolls per pallet, each roll packaged in boxes.
Printing: up to 4 color high-quality printing.
Note: private label with custom sizes and colors is available.

Specification ASTM Standard Typical Values
Unroll ability D1970 No cracking, tearing or damage
Thickness D5147 45 mil
Tensile strength – MD / CD D1970 ≥25 lbs/inch / ≥25 lbs/inch
Tear Resistance – MD / CD D1970 ≥20 lbs /≥20 lbs
Permeability E96 ≤0.1 us perms
Thermal Stability at 200OF D1970 Pass
Fire Rating E108 Class A
Low Temperature Flexibility D1970 Pass
Adhesion to Plywood @ 75OF / 40OF D1970 ≥12 lbs/ft / ≥2 lbs/ft
Nail Seal ability D1970 Pass
Temperature Range - -40OF to 260OF

VShield SureTack Underlayment is a multilayer nonwoven high-temp self-adhered roofing underlayment with polymer modified bitumen-based superior adhesion and lighter in weight for under Asphalt Shingle Roofs.

A-shild_Suretack (1)
A-shild_Suretack_2 (1)

Features and Benefits

  • Surface: Strong polypropylene (PP) surface with UV and weather resistive coating that add water shedding redundancy in the roofing system while protecting the structure from damage.
  • The Surface top creates easy walkability and safety.
  • Weather-Tight Seal: Strong Overlap System.
  • 100% Inorganic Surface: Synthetic construction offers long term moisture protection from rot and mold growth.
  • Durable: UV stabilized surface resists UV degradation for up to 180 days.
  • Polymer Modified Bitumen Based: Formulated for superior adhesion.
  • Handling: Light weight with Easy-Peel Dual Split-Release backer.
  • Certified to ICC ES AC 188 and ICC ES AC 48
  • Certified to ASTM D1970
  • Complied to ASTM D4789 as specified in FBC HVHZ TAS110
  • Complied to TAS 103 (Partial) requirements
  • Complied to FRSA/TRI Manual standards
  • 25 Years limited warranty.

Availability

Roll: 36”X 67 ft. | 2 sq. roll gross.
Packaging: 25 rolls per pallet, each roll packaged in boxes.
Printing: up to 4 color high-quality printing.
Note: private label with custom sizes and colors is available.

Specification ASTM Standard Typical Values
Unroll ability D1970 No cracking, tearing or damage
Thickness D5147 40 mil
Tensile strength – MD / CD D1970 ≥25 lbs/inch / ≥25 lbs/inch
Tear Resistance – MD / CD D1970 ≥20 lbs /≥20 lbs
Permeability E96 ≤0.1 us perms
Thermal Stability at 200OF D1970 Pass
Fire Rating E108 Class A
Low Temperature Flexibility D1970 Pass
Adhesion to Plywood @ 75OF / 40OF D1970 ≥12 lbs/ft / ≥2 lbs/ft
Nail Seal ability D1970 Pass
Temperature Range - -40OF to 260OF

VShield MagnaTack Underlayment (formerly Veer PSU Plus) is a High-Temp Self Adhered Roof Protection- used under Metal, Tile, Slate, Shakes, and Asphalt Shingle Roofs.

Features and Benefits:

  • Surface: Strong polypropylene (PP) surface with UV and weather resistive coatings that add water shedding redundancy in the roofing system while protecting the structure from damage. The Surface top creates easy walkability and safety.
  • All Temperature Performance: (-)40° C to 126° C; all climates, under all roofing styles.
  • Weather-Tight Seal: Great Asphalt to asphalt lap system
  • 100% Inorganic Surface: Synthetic construction offers long term moisture protection - won’t rot and is inert to mold growth.
  • Durable: Heavy synthetic surface resists tearing during roof installation - UV stabilized surface resists UV degradation up to six months.
  • Bitumen Based: Formulated for superior adhesion
  • Handling: Easy-Peel Dual Split-Release backer film
  • Tiles: TAS 103 Approved

Availability:

Roll: 36”X 72ft|2 sq. roll | 55lb
Packaging: 25 rolls per pallet, each roll packaged in boxes
Printing- Colored high quality printing
Note: Private Label with custom sizes and colors available

Specification ASTM Standard Typical Values
Unroll ability ASTM D1970 No Cracking, Tearing or damage
Thickness ASTM D 5147 60 mil
Tensile Strength ASTM D 1970 MD:130 lbs/Inch, CD:110 lbs/Inch
Tear Resistance ASTM D 1970 MD:165 lbs/ft , CD:150 lbs/ft
Permeability ASTM E96 0.03
Thermal Stability ASTM D 1970 250° F /Pass
Fire Rating ASTM E 108 CLASS A
Low Temperature Flexibility ASTM D 1970 PASS
Adhesion to Plywood at 75°F ASTM D 1970 23lb/ft
Nail Sealability ASTM D 1970 Pass
Temperature Range - -40° F to 260° F
